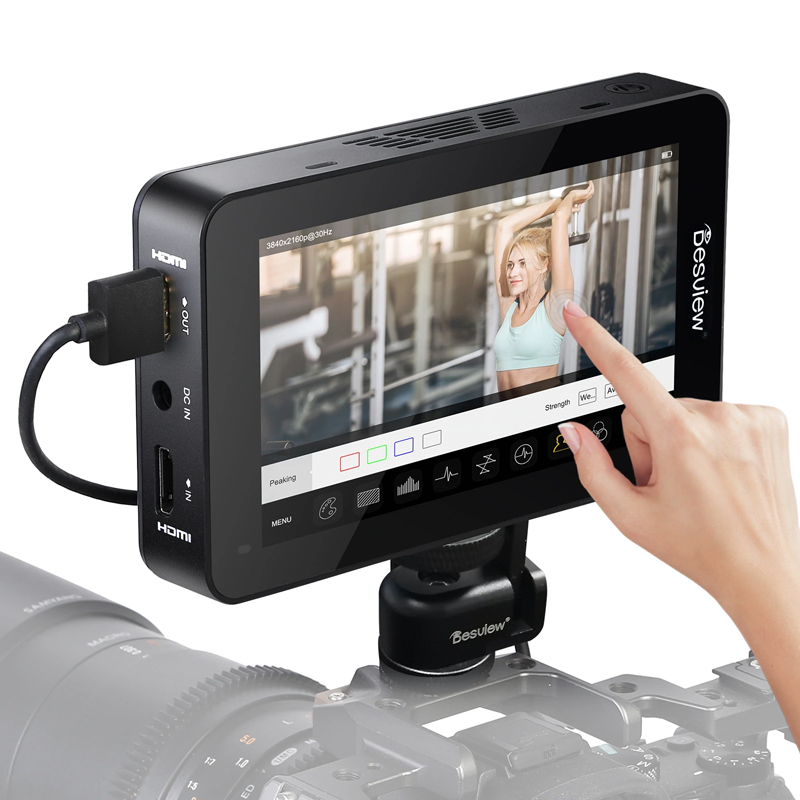

Desview R6 UHB 5.5" 2800 Nits Touch Screen On-Camera Field Monitor

The Desview R6 UHB is an ultra-high brightness (UHB) 5.5” monitor for on-camera use. It features a 2800 nit IPS panel that can display better color representation, wider viewing angles and a brighter screen than traditional LCD panels. The R6 UHB has a full HD 1920x1080 native resolution and supports DCI 4K24/UHD 4K30 video formats via HDMI input and output.

The R6 UHB supports multiple aspect ratios including 1:1, 2:3, 3:2, 4:3 and 16:9 while maintaining high image quality. The monitor is powered by Sony NP-F series batteries or Canon E6 batteries and has built-in cooling fan for better heat dissipation during long hours of shooting in the field.battery or external power supply via a 7 to 24V input port. It also includes an 8V output port to power other accessories such as cameras or monitors.

Desview has developed many useful functions for this monitor including Waveform, Zebra Patterning, False Color Displaying and Audio Meters to name just a few. You can also import 3D LUTs for precise color grading directly from your SD card slot without having to connect your camera to any other device.

Product Features in Detail

Full HD Panel with 2800 Nits
Desview R6 UHB Touchscreen Monitor features 2800nits ultra-high brightness, giving clear and non-reflective display even under strong sunlight. 1920*1080 resolution and 1000:1 high contrast ratio bring images with more details in shadows and highlights.

Touch Screen and Shortcut Icons Operation
No complicated button control. You could easily finish all instructions by touching such as pinch-to-zoom, quick backlight, and brightness adjustment, popping up the shortcut menu and changing the setting.

4K HDMI In/Out and Headphone Jack
Supporting HDMI signal input/output up to 4K signal, R6 UHB can be connected directly to most DSLR or HD/4K video cameras and synchronize footage smoothly. A 3.5mm headphone jack allows you to monitor the audio in real-time.

Support Custom 3D LUTs and HDR
R6 UHB boasts a custom 3D LUT function via SD card (inbuilt Log files) for fast color calibration. The HDR function in R6 contains HLG mode and PQ mode. They both provide a wider color gamut and a higher dynamic range, making the images more vivid.

Professional Assisting Features
More monitor functions are equipped for improving your filmings, such as False Color, Zebra, Histogram, Waveform, Vectorscope, All Wave, Single Color, Peaking, and Safe Area, better assisting in exposure, focusing, and composition.
